1 Inch 7 Dies 1-4 Layer Hose Hydraulic Crimping Machine / Hose Crimping Machine High Pressure 6-25mm With Blue Color 12v/24V
Product Description
-

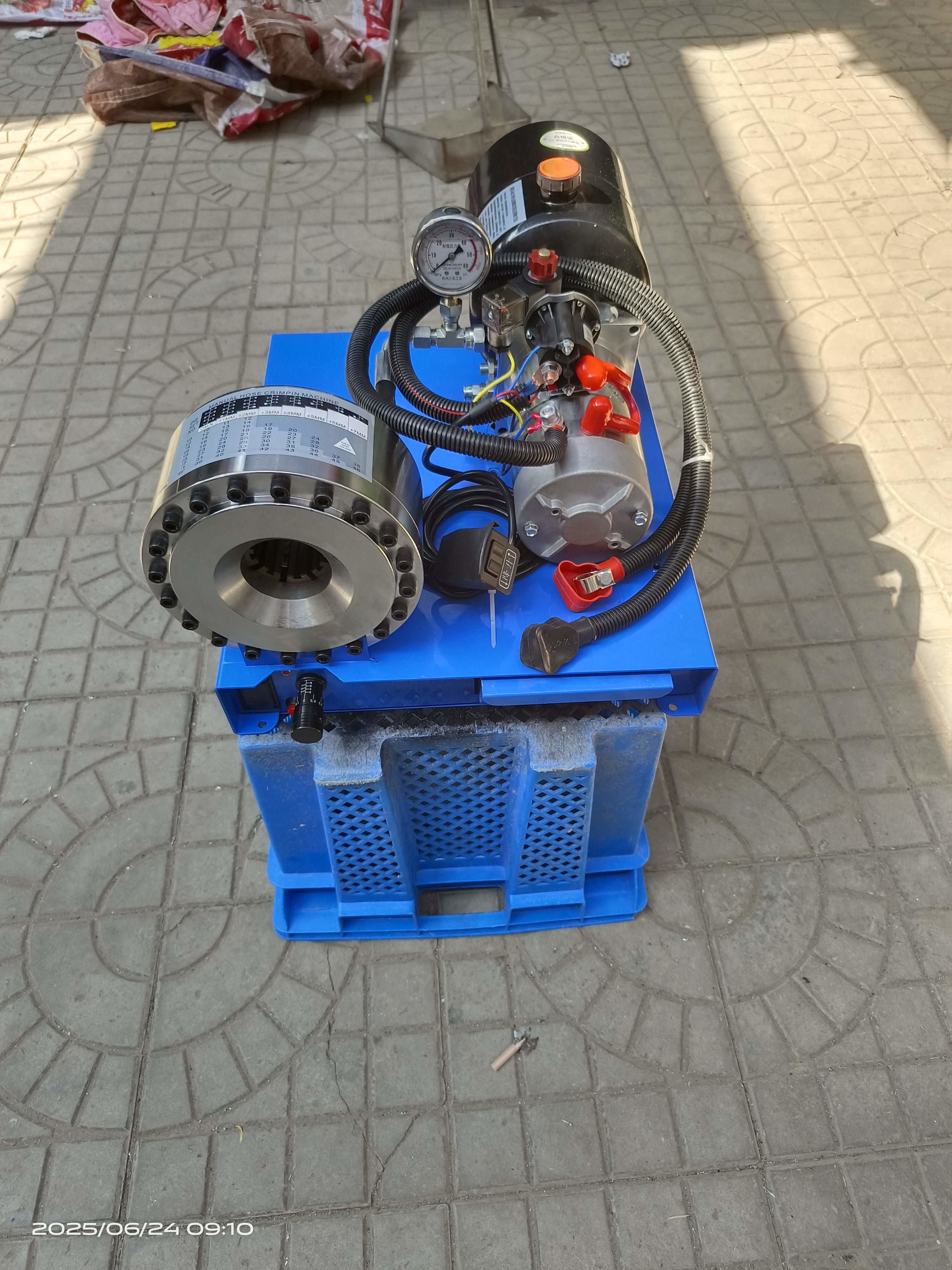

Introducing our 12V/24V 7 Dies 1 Inch Braided Hose Crimper, a battery-driven hydraulic hose pipe crimping machine designed for efficiency and versatility in various applications. This compact yet powerful tool is ideal for professionals working in automotive, construction, and agricultural industries.
Key Features
- Battery Operated: The dual voltage option (12V/24V) allows for flexibility and convenience, making it suitable for both on-site and workshop use.

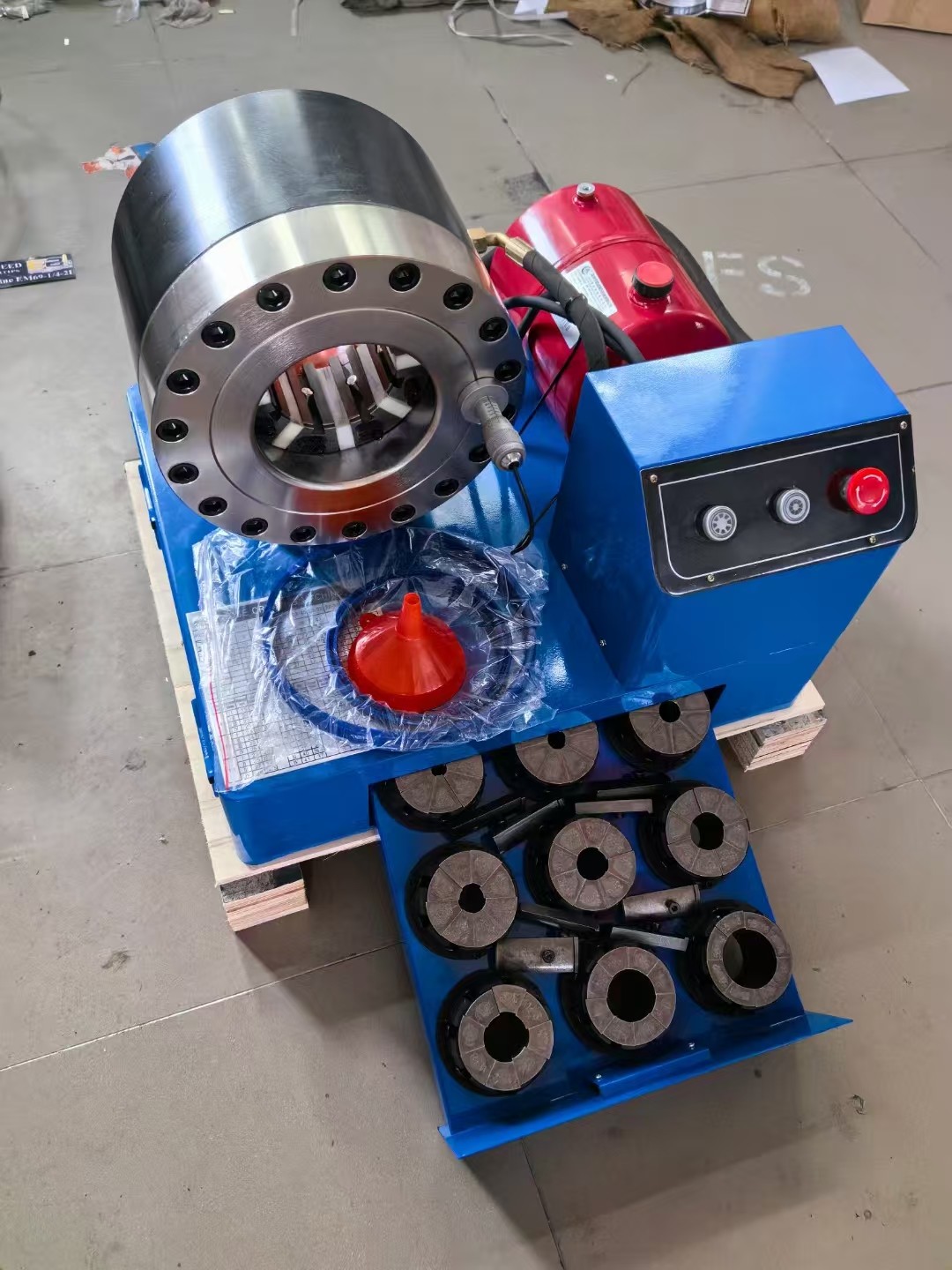

- 7 Dies Included: The machine comes equipped with seven different crimping dies, accommodating hose sizes from 6mm to 25mm (1 inch), ensuring versatility for various hose types and applications.
- Robust Construction: Built with high-quality materials, our crimper guarantees durability and longevity, capable of withstanding the demands of heavy usage.
- User-Friendly Design: The lightweight design and ergonomic handle ensure comfortable operation, reducing user fatigue during extended use.
- Hydraulic Power: Utilizing hydraulic technology provides consistent crimping pressure, ensuring secure and reliable hose connections.
.
THE MOBILE CAR HOSE CRIMPER MACHINE'S LEADING ADVANTAGES
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit
TECHNICAL DATA
| Model | FY-25CZ Pipe Crimping Machine |
| Crimping Range | 6-25(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-1(inch) |
| Max. Opening | 114(mm) |
| Die Sets | 7 |
| output volume of pump | 4L |
| System Pressure | 30(Mpa) |
| Accuracy | 0.01(mm) |
| the max open tolerance | 30 ±mm |
| Standard Voltage | 12V/24(V) |
| Motor Power | 1.5(KW) |
| Length | 600(mm) |
| Width | 450(mm) |
| Height | 350(mm) |
| Weight | 52(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
| Crimping Range | 6-25mm(1/4''-1''inner diameter of hose) |
| The Largest Crimping Pressure | 600T |
| accurcy | 0.01mm |
| Dimension | 0.6m*0.45m*0.35m(0.1 m³) |
| Maximum open diameter | 114mm |
| dies | 7 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47) |
| Output volume of pump | 4L |
| Rated pressure | 30Mpa |
| Work efficiency | 200pcs/h |
| Weight | 52kg |
| packing dimension | 620*470*370mm |
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY25CZ is with high accuracy dial, 0.01mm.
► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-25CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
