Product Description:

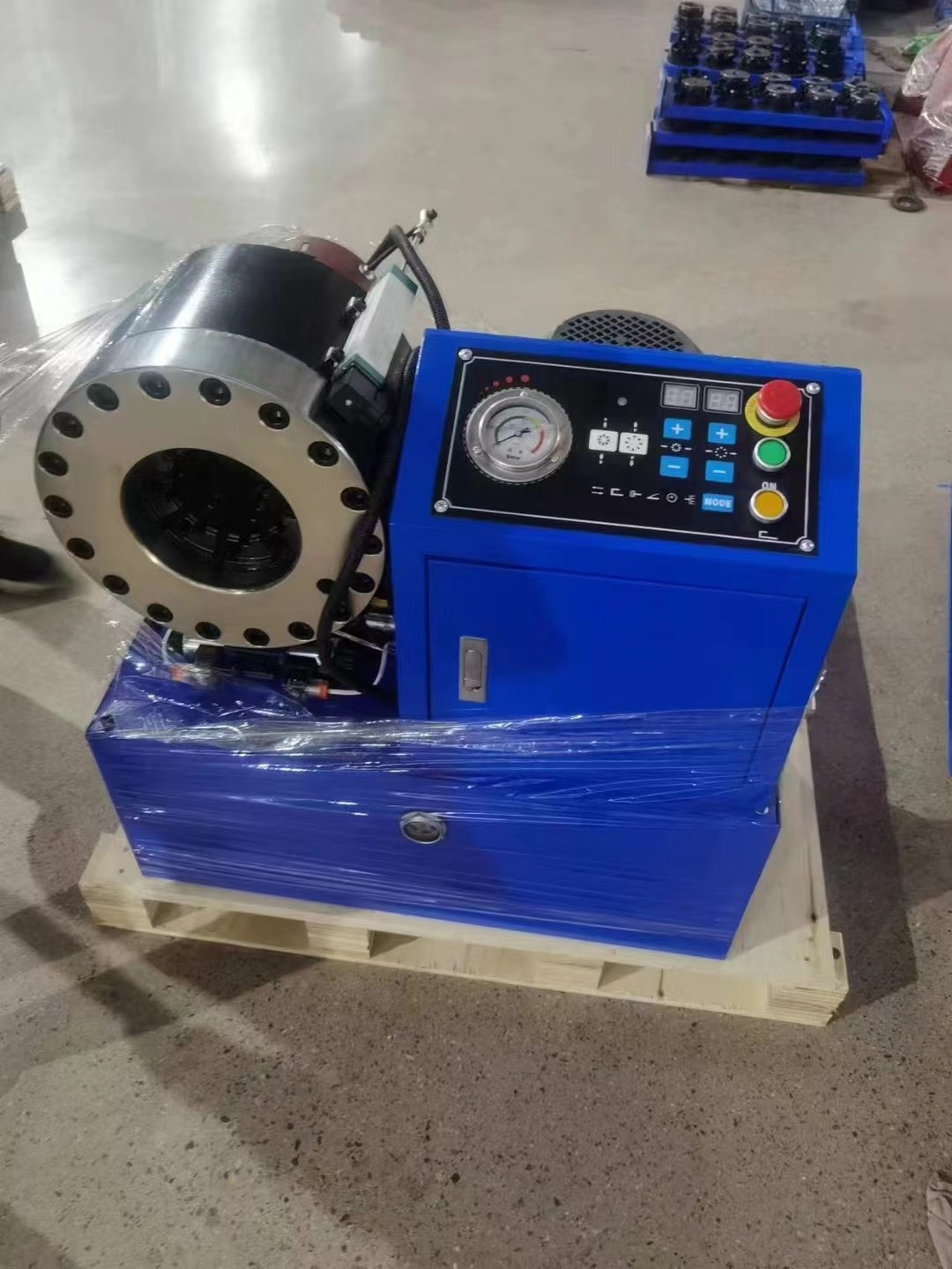

Portable Hydraulic Hose Crimper is a professional crimping tool used in industrial applications. It is designed to provide a reliable and efficient crimping solution for different kinds of hoses. It has a weight of 275kg and is powered by a 3kw/4kw motor. This product has a crimping force of 300T and its size is 950*630*700 mm. It is also equipped with a different control system, along with a portable and digital panel, making the operation easier and faster. Thanks to its advanced features, it can be used for a variety of applications such as industrial, automotive, and construction. It is an ideal choice for those who need a reliable and efficient crimping solution.
| crimping range | 6-38 mm(1/4~1.5") |
| quantity of dies | 8 sets |
| accuracy | 0.01 mm |
| output volume of pump | 2.5L/5L |
| system pressure | 26mpa/31.5mpa |
| motor power | 3kw/4Kw |
| voltage | 220v/240v/380v/415v (optional) |
| crimping force | 300 t |
| work efficiency | 200pcs/h |
| maximum open diameter | 104 mm |
| the max open tolerance | 20 ±mm |
| machine dimension | 950*630*700 mm |
| package dimension | 1000*680*750 mm |
| net weight | 275 kg |
| gross weight | 300 kg |
Features:
- Product Name: Portable Hydraulic Hose Crimper
- Weight: 275kg
- Crimping Speed: 200 Pcs/h
- Crimping Force: 300T
- Type: Crimper
- Crimping Range: 1/4-1.5 Inch
- Digital Panel: Digital Display, Digital Control Interface, Digital Memory Function
Technical Parameters:
| Parameter | Value |
|---|
| Type | Crimper |
| Crimping Force | 300T |
| Voltage | 220v/240v/380v/415v (optional) |
| Max Pressure | 26mpa/31.5mpa |
| Crimping Range | 1/4-1.5 Inch |
| Warranty | 1 Year |
| Product Name | Portable Hydraulic Hose Crimper |
| Crimping Speed | 200 Pcs/h |
| Size | 950*630*700 Mm |
| Motor Power | 3kw/4kw |
Applications:

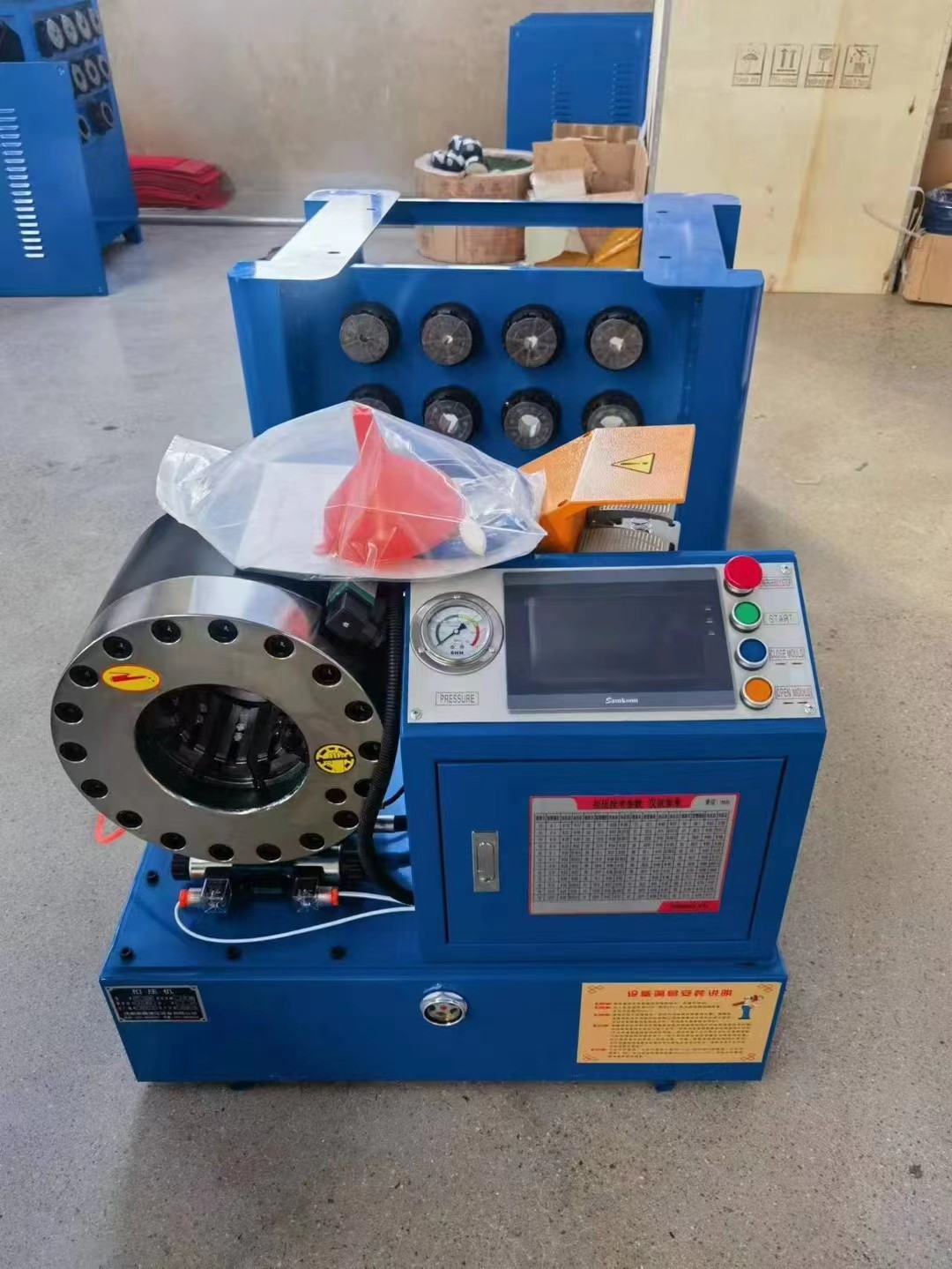

The Portable Hydraulic Hose Crimper from FY is the perfect choice for a reliable and efficient crimping solution. Designed with a PLC pannal and a button to control the whole machine process, the FY-P38 is capable of crimping 1/4 to 1.5 inch hose with a maximum pressure of 26mpa/31.5mpa and a motor power of 3kw/4kw. Its compact size of 950*630*700 mm makes it very easy to transport and store.
The Portable Hydraulic Hose Crimper is ideal for both industrial and commercial applications. It is great for crimping hoses for a variety of purposes such as automotive, agriculture, construction, and plumbing. With its portability, it can be used in remote locations where a power source may not be available, making it the perfect tool for on-site repairs. It is also perfect for those who need to make quick repairs or replacements in a short amount of time, as it is fast and efficient.
The Portable Hydraulic Hose Crimper from FY is an excellent choice for those who need a reliable and efficient crimping solution. With its portability, powerful motor, and PLC pannal and button control, it is perfect for a variety of applications and can be used virtually anywhere. It is the ideal choice for a reliable and efficient crimping solution.
Customization:
Custom Portable Hydraulic Hose Crimper
Brand Name: FY
Model Number: FY-P38
Place of Origin: China
Voltage: 220v/240v/380v/415v (optional)
Weight: 275kg
Product Name: Portable Hydraulic Hose Crimper
Crimping Range: 1/4-1.5 Inch
Type: Crimper
Special Features: different control system, 6 to 38mm, PLC pannal
Support and Services:
Portable Hydraulic Hose Crimper offers a wide range of technical support and services. Customers can get assistance with product installation, troubleshooting, and maintenance. Our technical team is available 24/7 to provide online support and answer questions. We also offer comprehensive product warranties and a satisfaction guarantee.
In addition, our customer support team is available to answer questions, provide guidance, and assist with product selection and ordering. We also offer product repair services and replacement parts, as well as training courses for our customers.
Packing and Shipping:
Packaging and Shipping
Our Portable Hydraulic Hose Crimper is packaged and shipped securely to ensure that it will arrive in perfect condition.
The crimper is packaged in a heavy-duty cardboard box with extra padding to protect the crimper during shipping. The box is labeled with the product name and the shipping address.
We use a variety of shipping methods, including ground, air, and expedited shipping. All orders are shipped with tracking information provided.
FAQ:
Q: What is the Brand Name of this Portable Hydraulic Hose Crimper?
A: The Brand Name of this Portable Hydraulic Hose Crimper is FY.
Q: What is the Model Number of this Portable Hydraulic Hose Crimper?
A: The Model Number of this Portable Hydraulic Hose Crimper is FY-P38.
Q: Where is this Portable Hydraulic Hose Crimper made?
A: This Portable Hydraulic Hose Crimper is made in China.
Q: What is the advantage of using this Portable Hydraulic Hose Crimper?
A: This Portable Hydraulic Hose Crimper is designed for ease of use and portability, making it ideal for use in a variety of applications.
Q: What is the maximum crimping pressure of this Portable Hydraulic Hose Crimper?
A: This Portable Hydraulic Hose Crimper has a maximum crimping pressure of up to 500 Bar.
